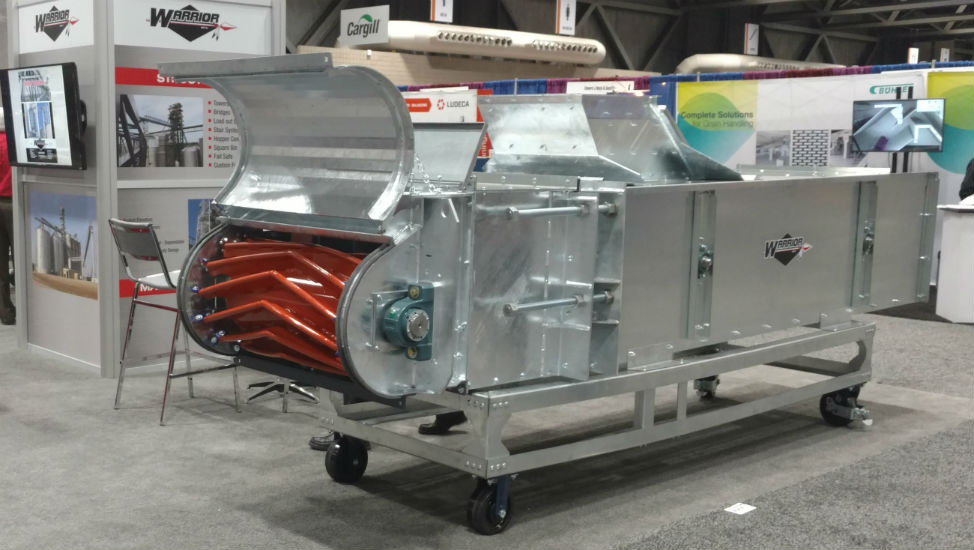

Enclosed Belt Conveyor

Enclosed Belt Conveyor

Product Specs

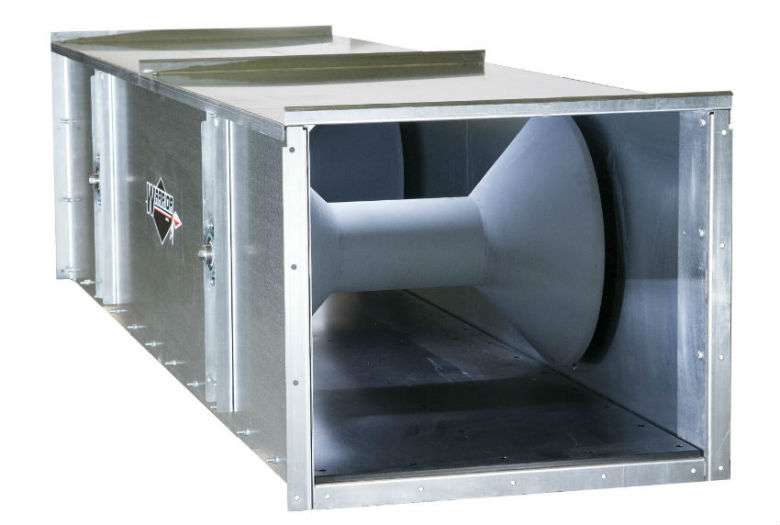

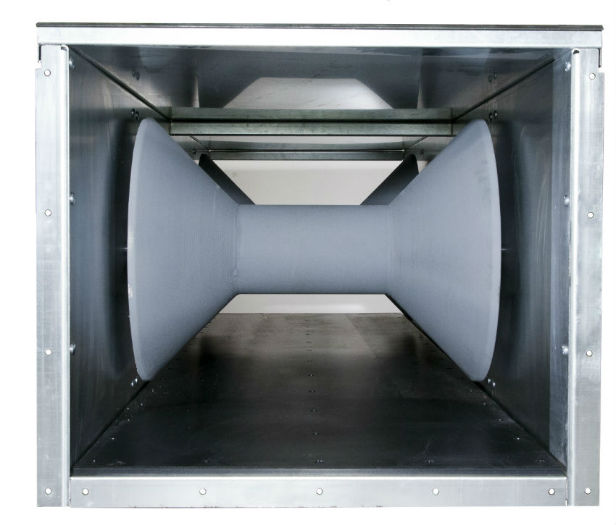

  • Heavy Duty 1/4" Idlers standard
  • 1/4" cone and 1/4" tube
  • UHMW anti-static return, available in 1/4" and 1/2"
  • 7GA Hot dipped head and tail sections
  • Full width inspection door head and tail

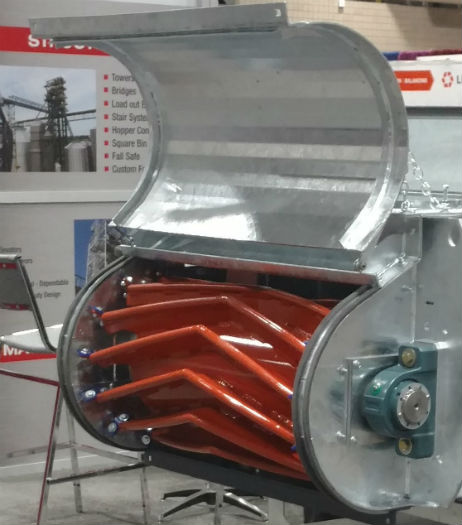

  • Mine Duty Chevron wing tail pulley for more efficient reloading
  • Threaded concentric hub for true spinning idlers

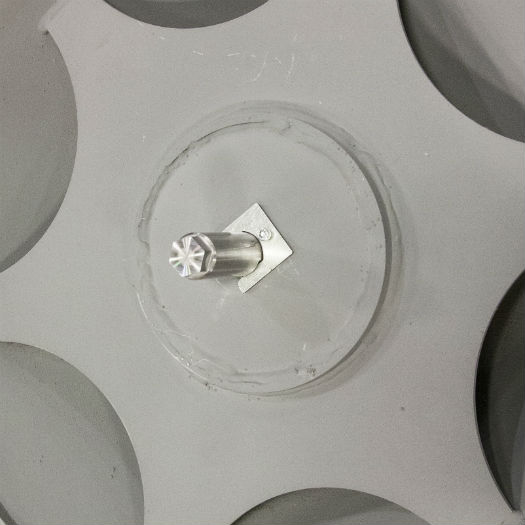

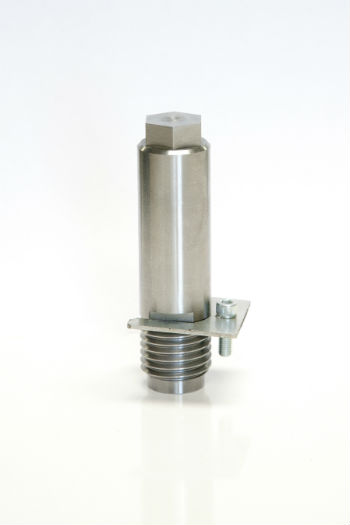

  • Threaded stub shaft with easy access retainer
  • Larger Belt edge distance for more forgiving loading
  • Recessed bottom fasteners for full wear thickness of bottom liner

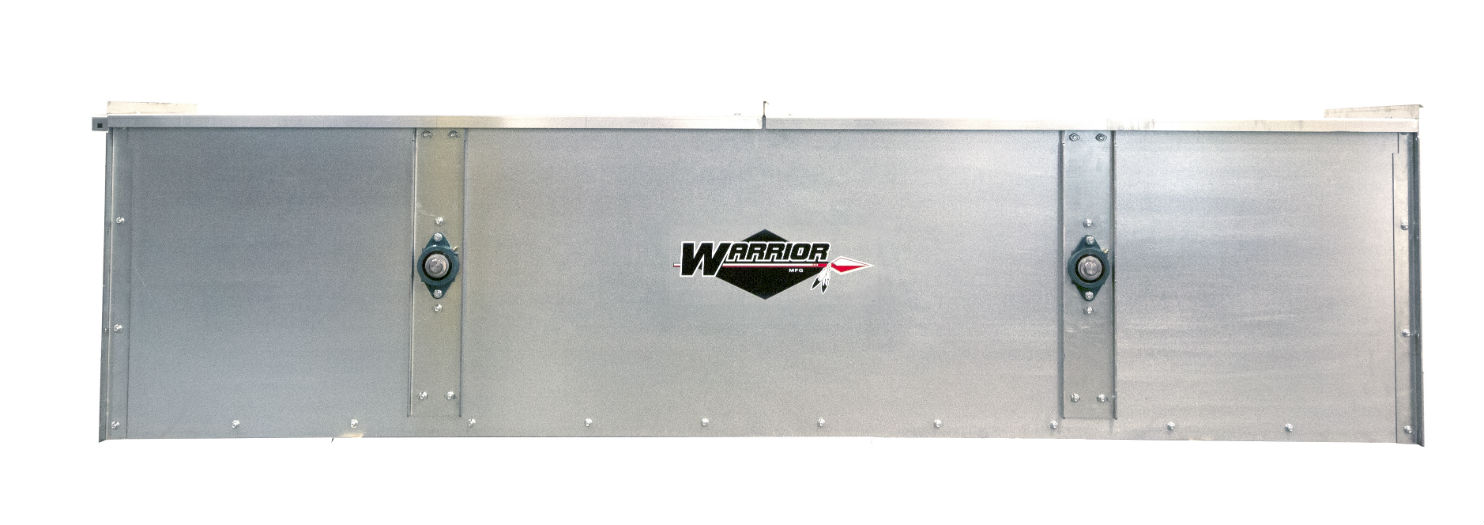

  • Side panels reinforced with bearing bracket
  • Bearings isolated from interior of housing
  • Slide lagged head pulley
  • Easy alignment Rear tail door
  • Easily adjusted take-up rods
  • Fully Sealed take-up housing
  • Tapered Loader for improved load centering
  • Adjustable Skirting
  • Square flange for easy gate/spouting sizing
