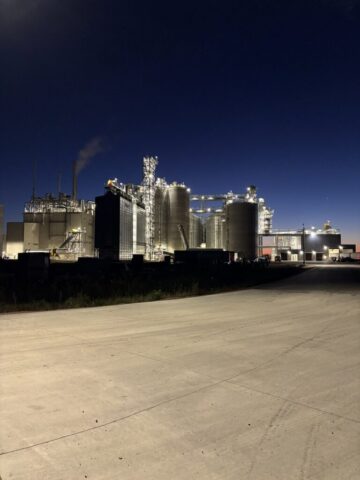

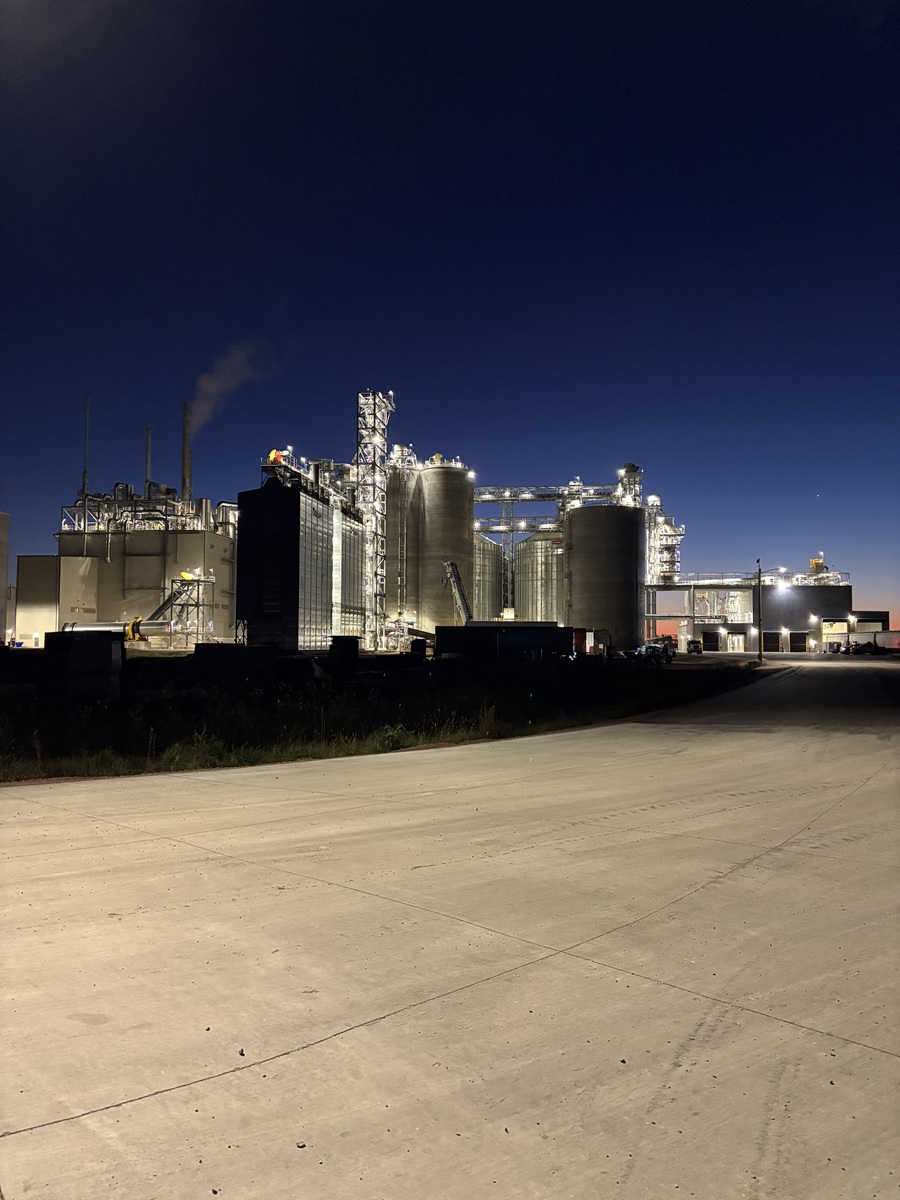

Soybean processing facility

Project overview

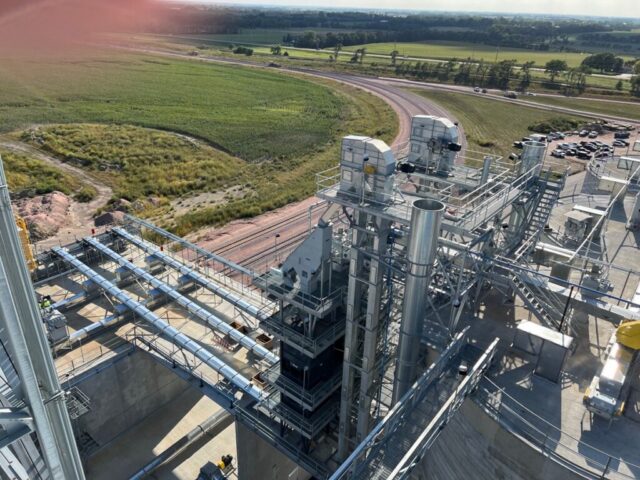

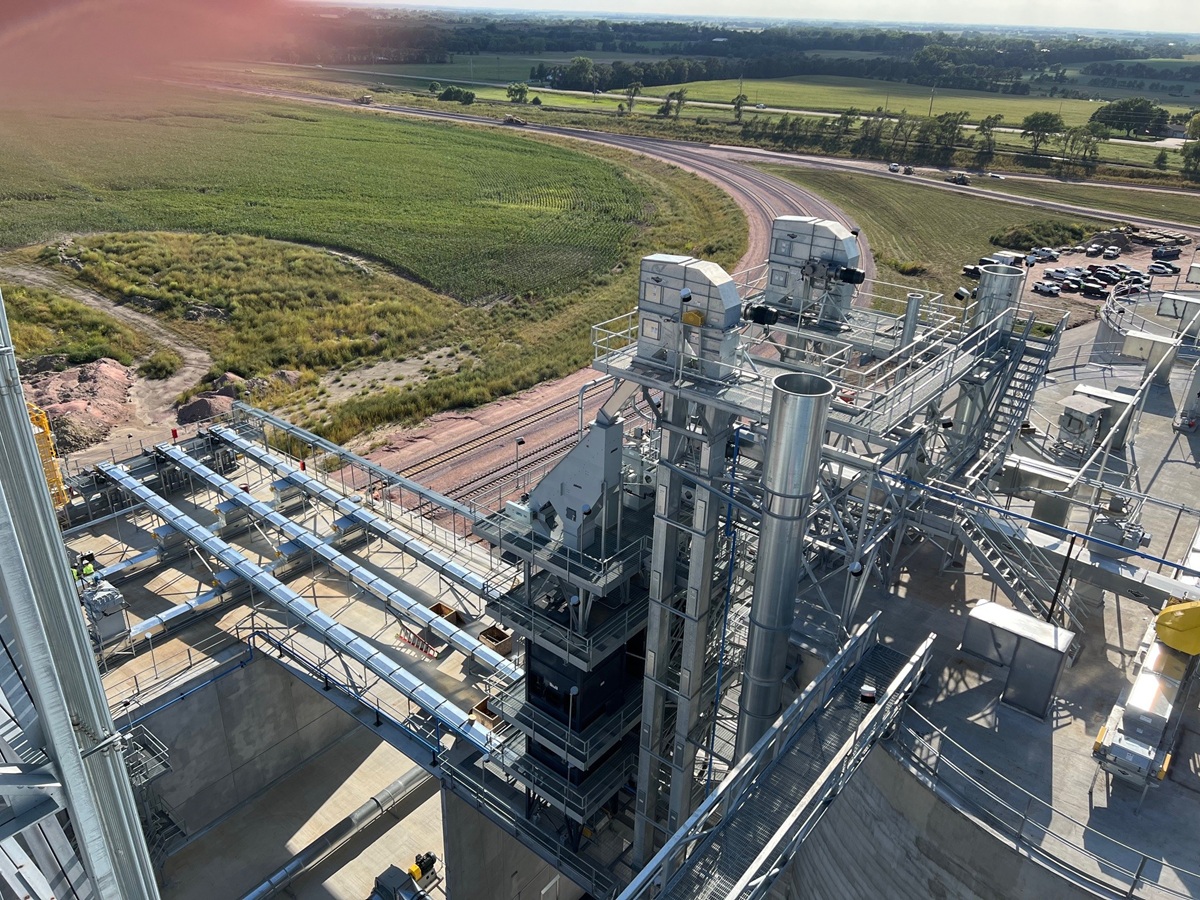

Warrior Mfg. engineered and provided several complete high-capacity material handling systems for this soybean processing facility, including truck and rail receiving, binfill, reclaim, transfer and loadout. The scope included custom engineered drag conveyors, bucket elevators, an integrated three bulkscale loadout system, and structural support towers designed for heavy duty, 24-7 day-in-day-out throughput.

Work included

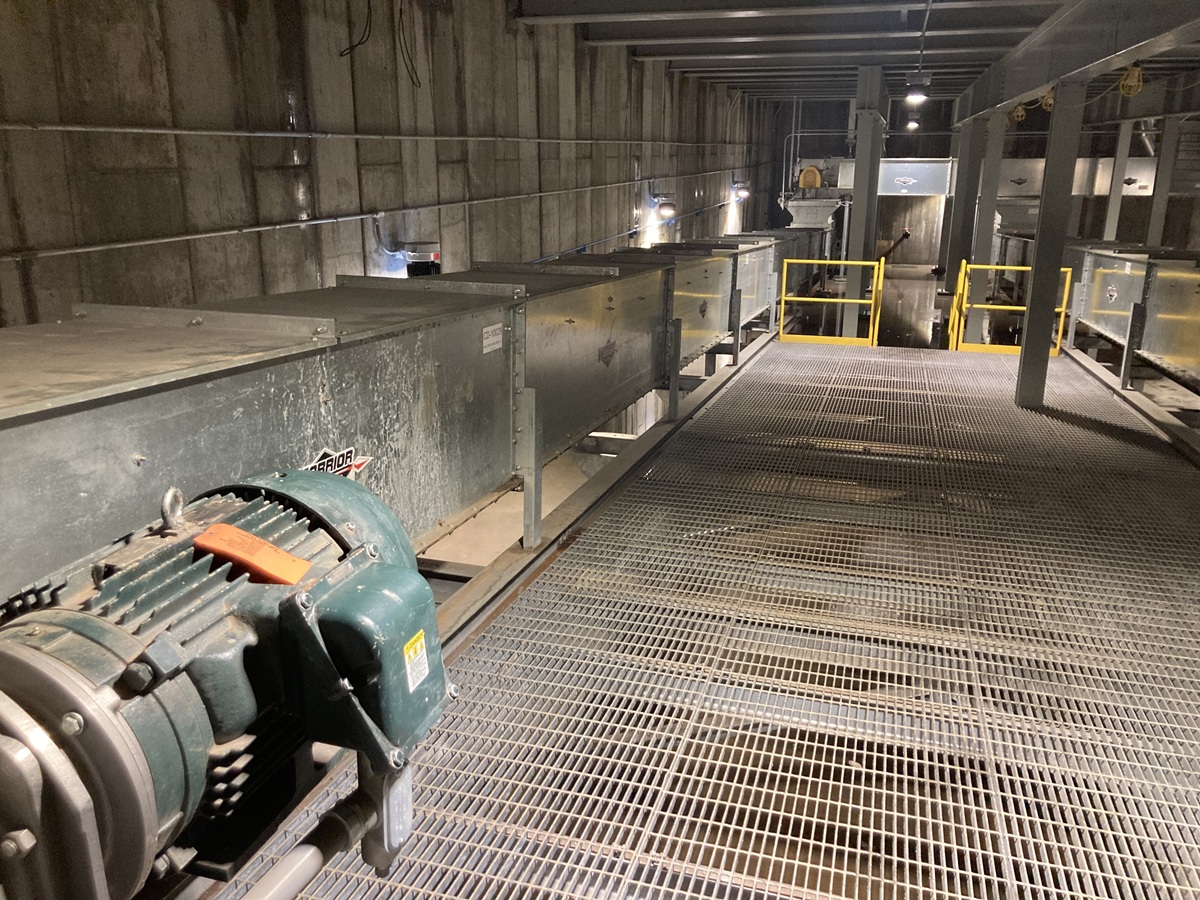

• (2) 25,000 BPH truck receiving drag conveyors
• (1) 25,000 BPH rail receiving drag conveyors

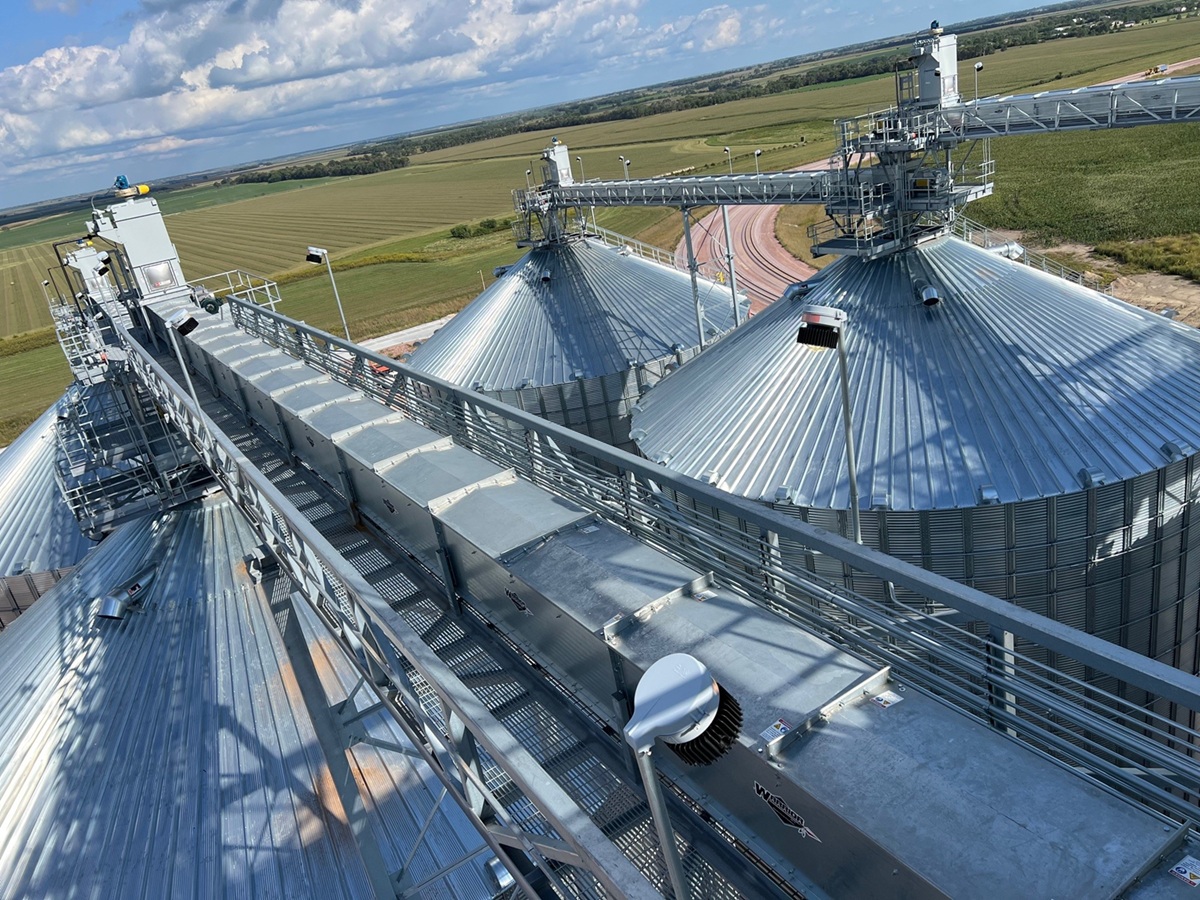

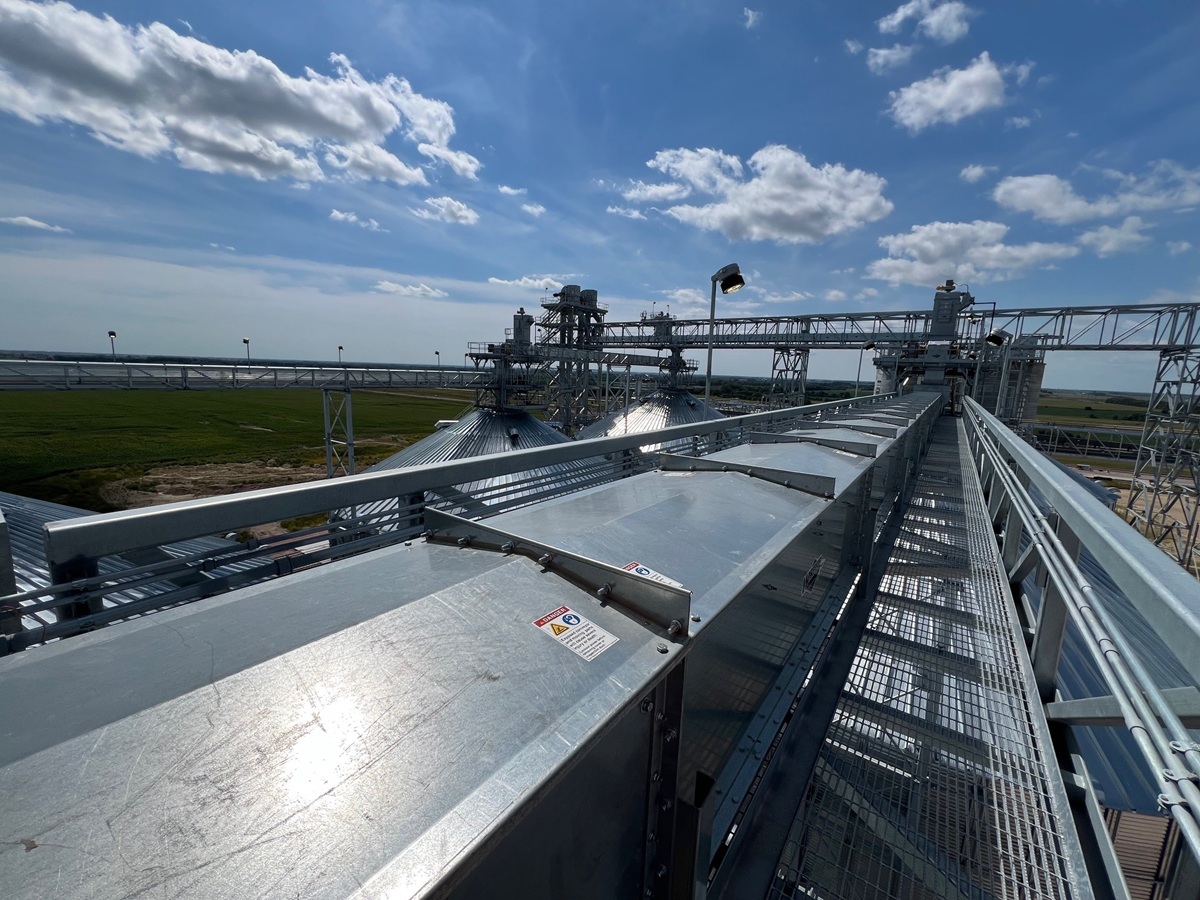

• Multiple 25,000 BPH binfill drag conveyors
• Multiple 10,000 BPH reclaim and transfer drag conveyors
• Multiple meal and hull reclaim/transfer drag conveyors

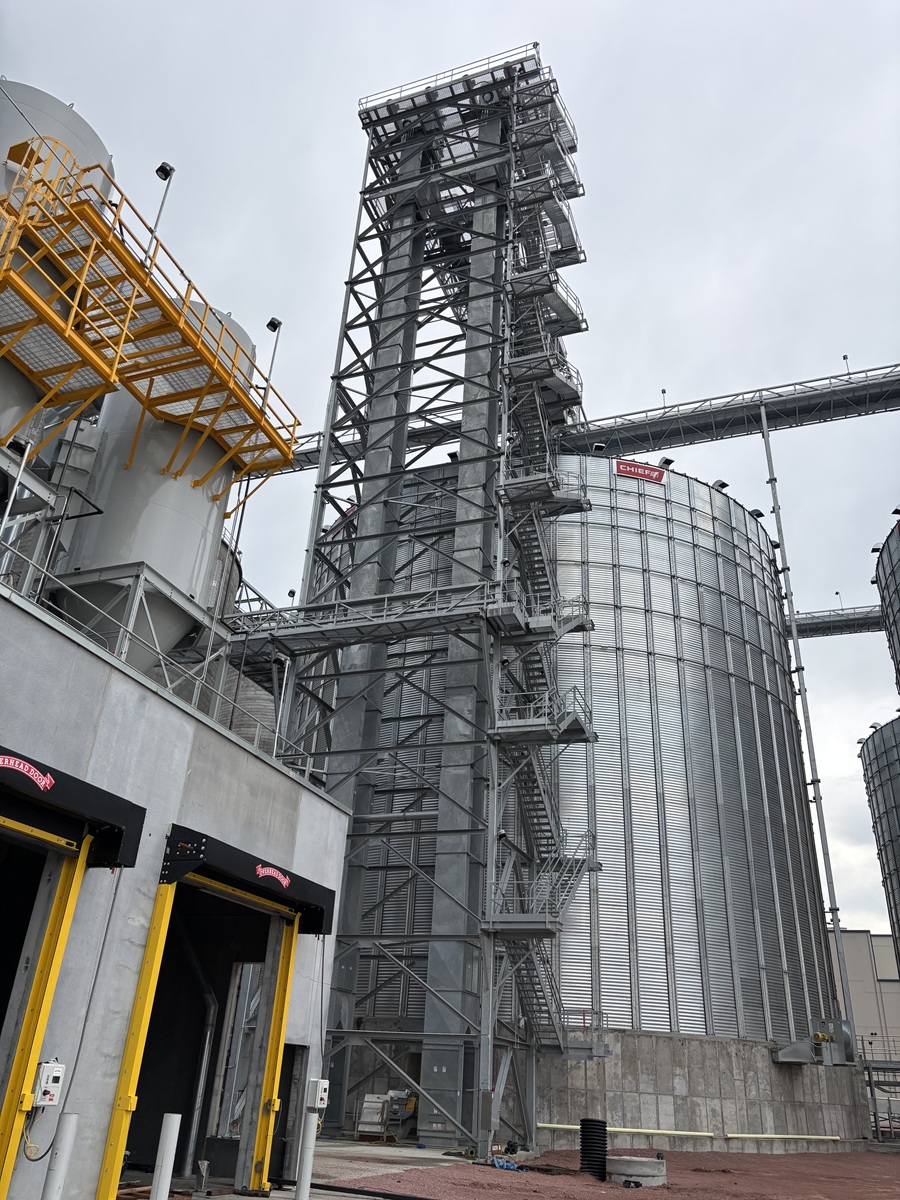

• (2) 25,000 BPH x 185′ tall bucket elevators
• (2) 10,000 BPH x 146 tall bucket elevators
• Multiple meal and hull bucket elevators
• 16x28x165′ receiving support tower
• 220′ of 16′ wide box truss supported by (2) 8x20x141′ support towers
• 250′ of 10′ wide box truss
• 600′ of 9′ wide handrail truss. Peak supports and H-frame towers
• H-frame with switchback stairs to for silo roof access
• Over 1,000′ of piperack system

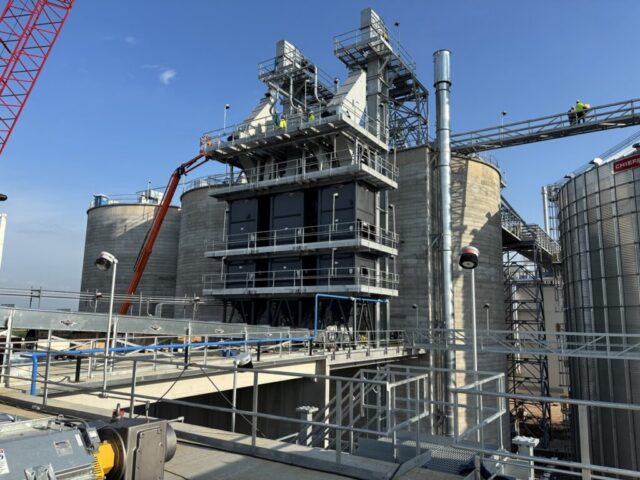

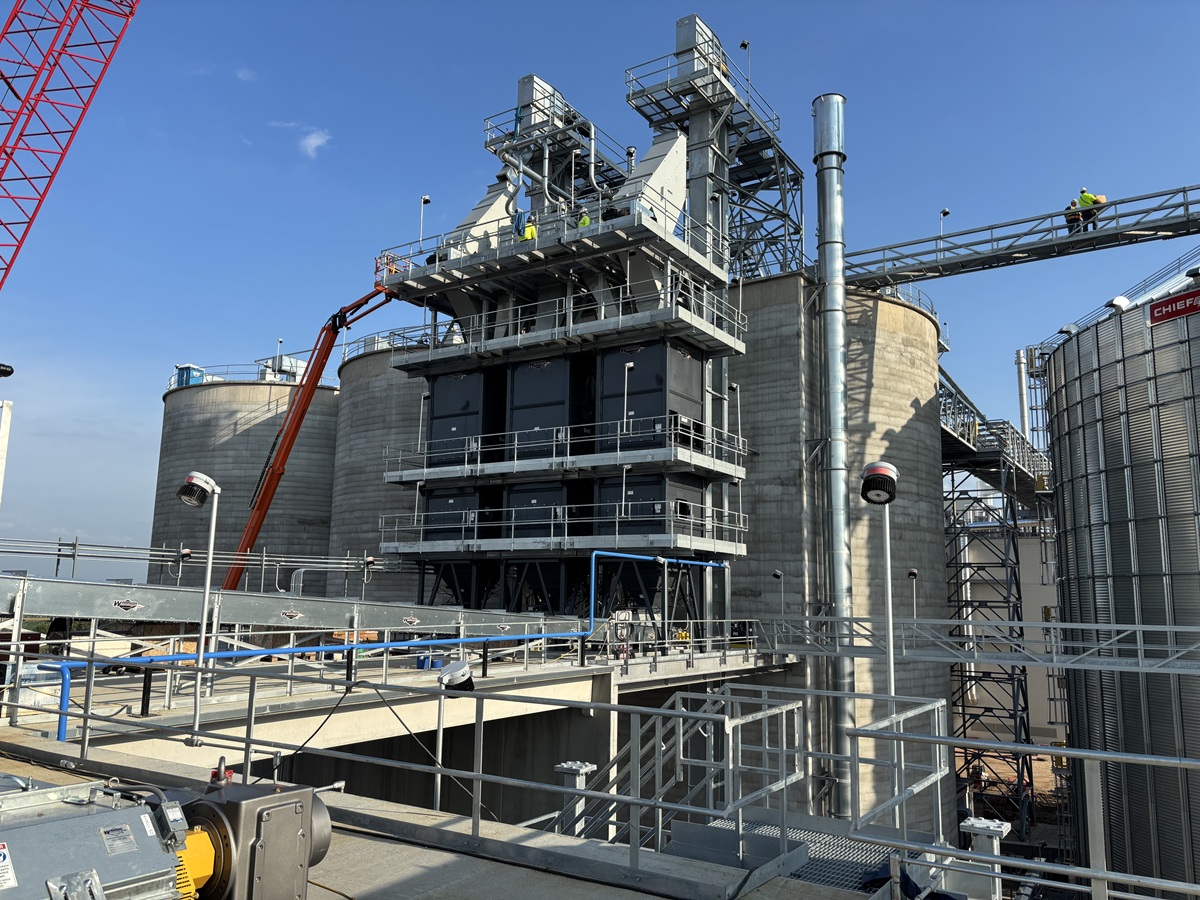

• (3) bulk scales and customized loadout structure
