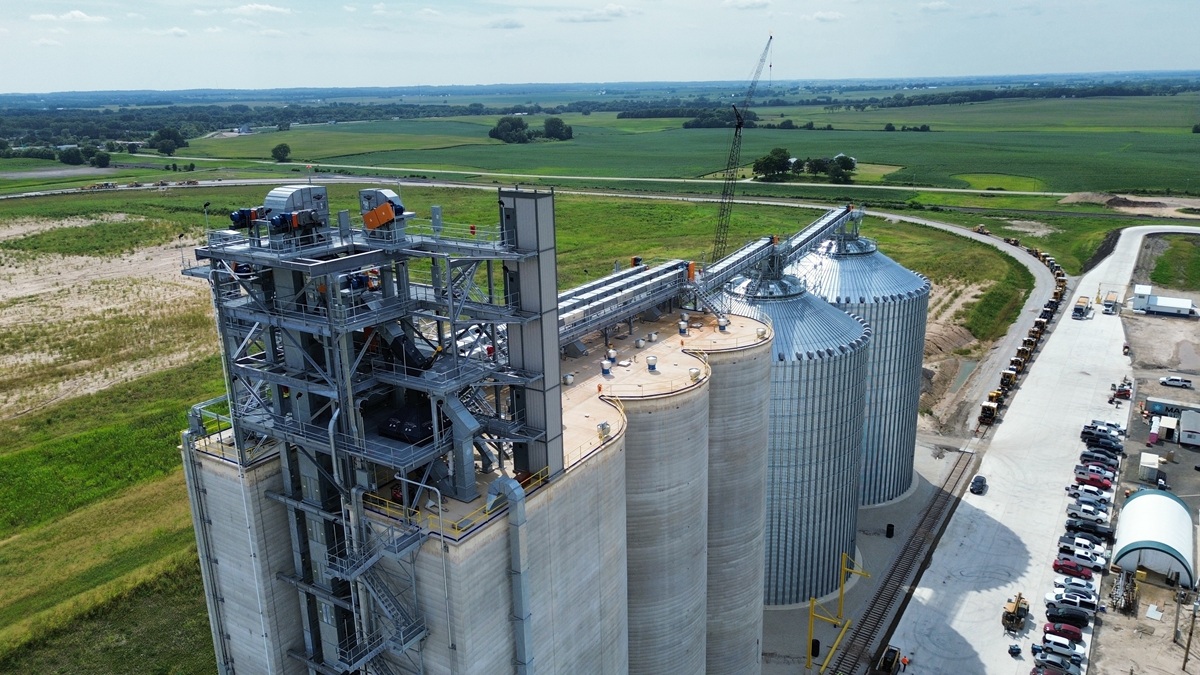

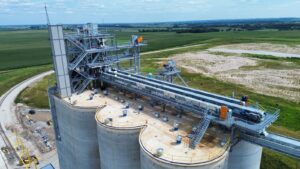

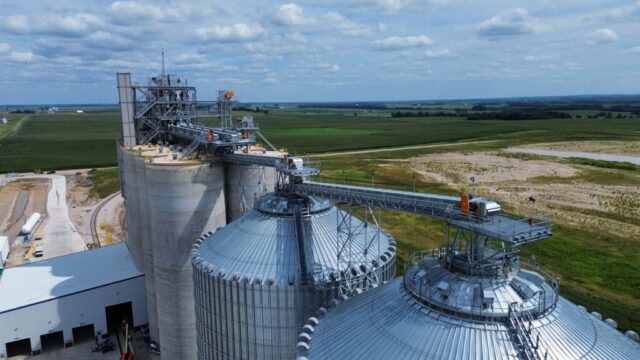

Shuttle loading facility

Project overview

Warrior Mfg. provided all of the material handling equipment and structural support systems for this shuttle loading facility. This includes recieving, distribution, reclaim, bin fill, & loadout. Equipment supplied included our Champion series belt conveyors, drag conveyors, bucket elevators, screener, and bulk scale system.

Work included

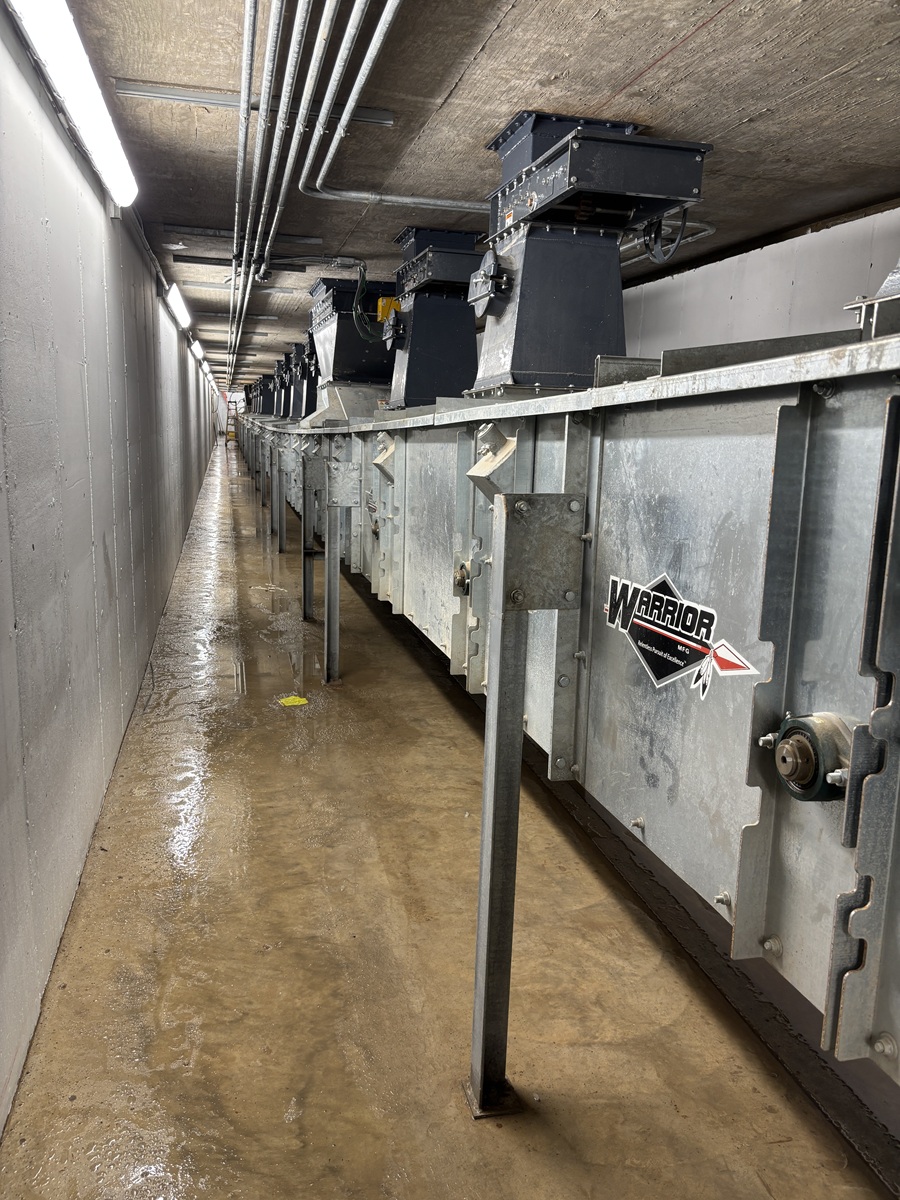

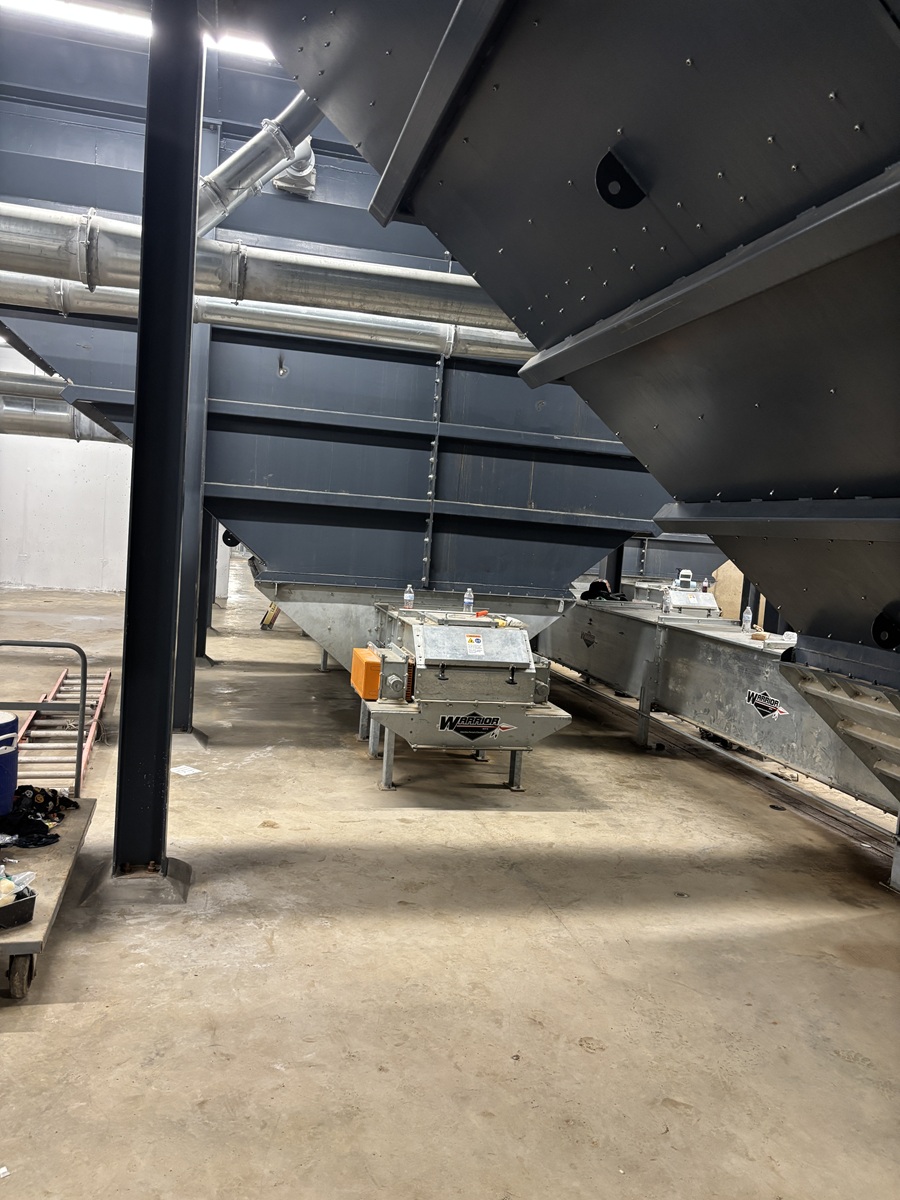

• (3) 20,000 BPH receiving drag conveyors

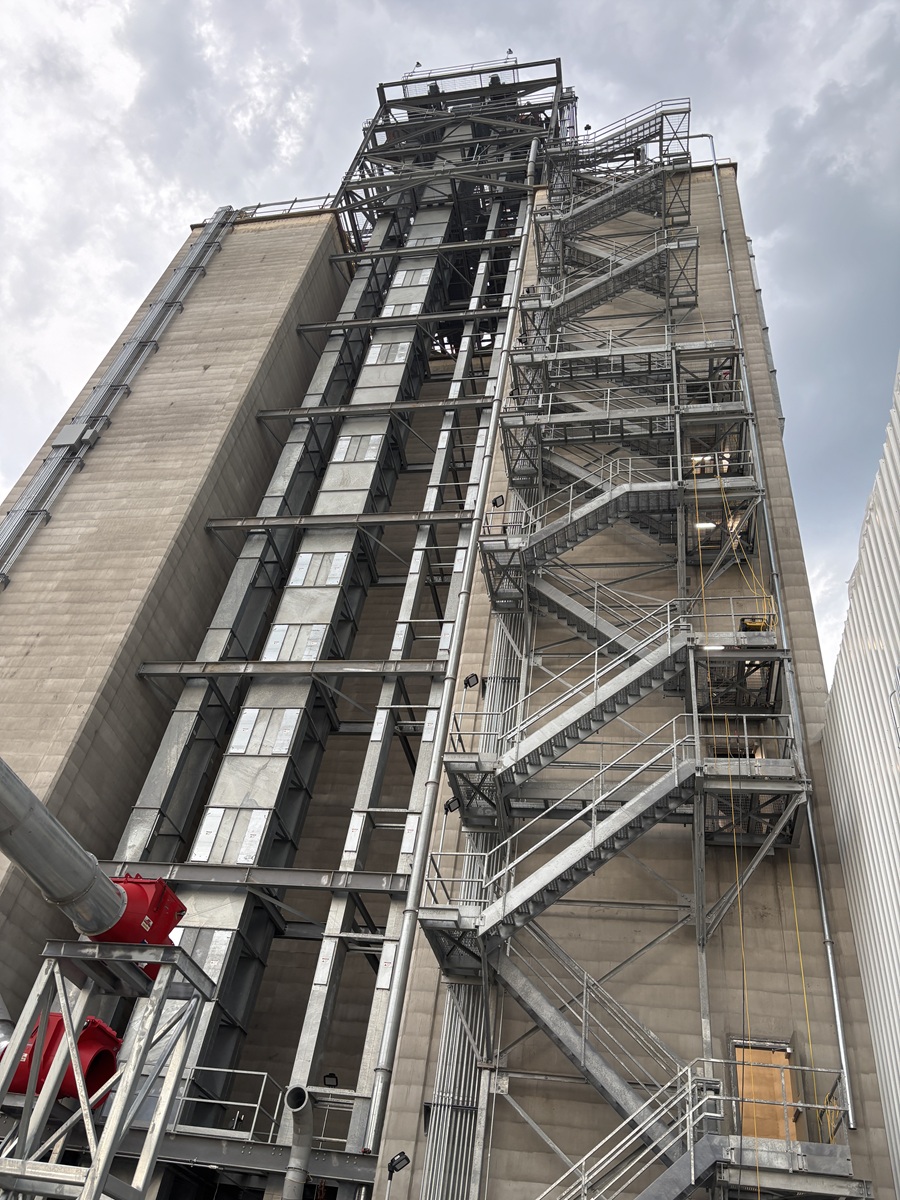

• (3) 20,000 BPH x 200′ tall bucket elevators

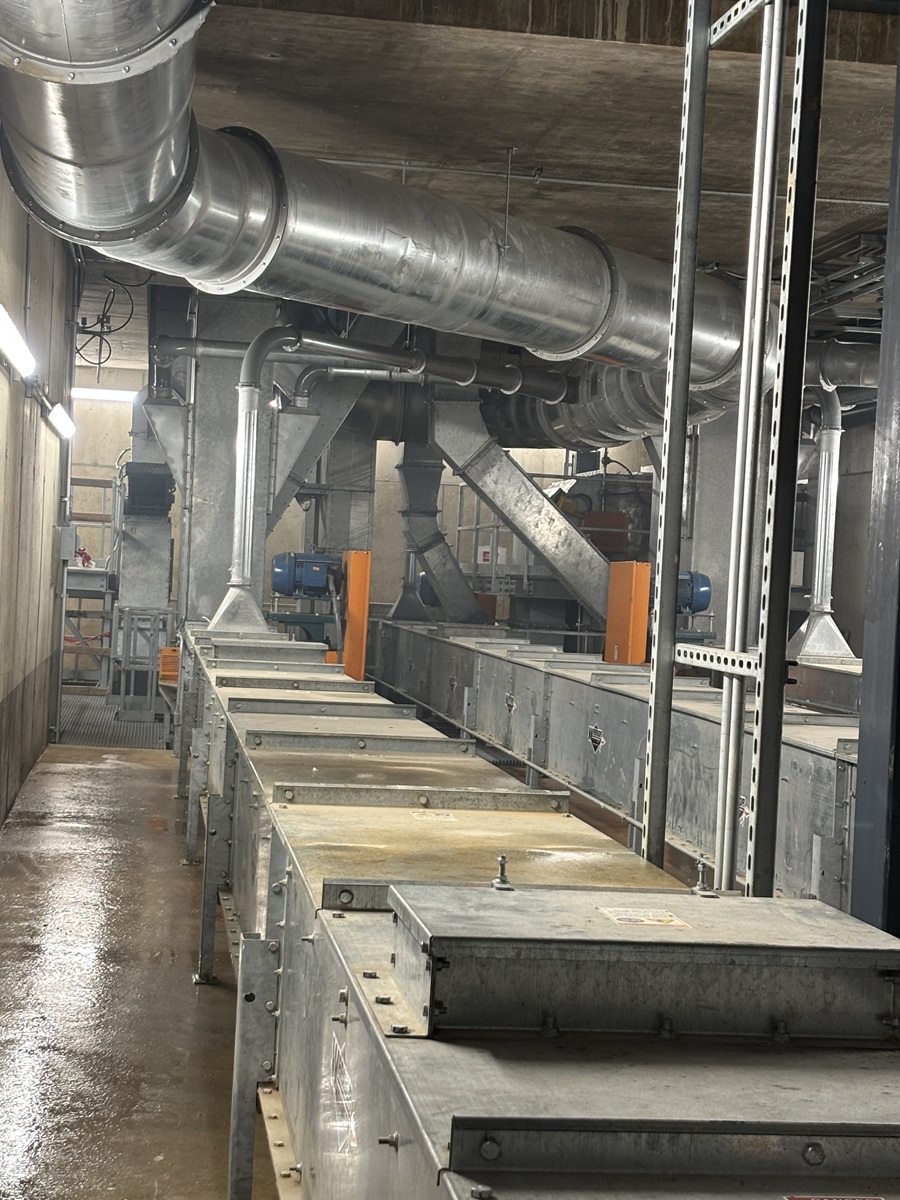

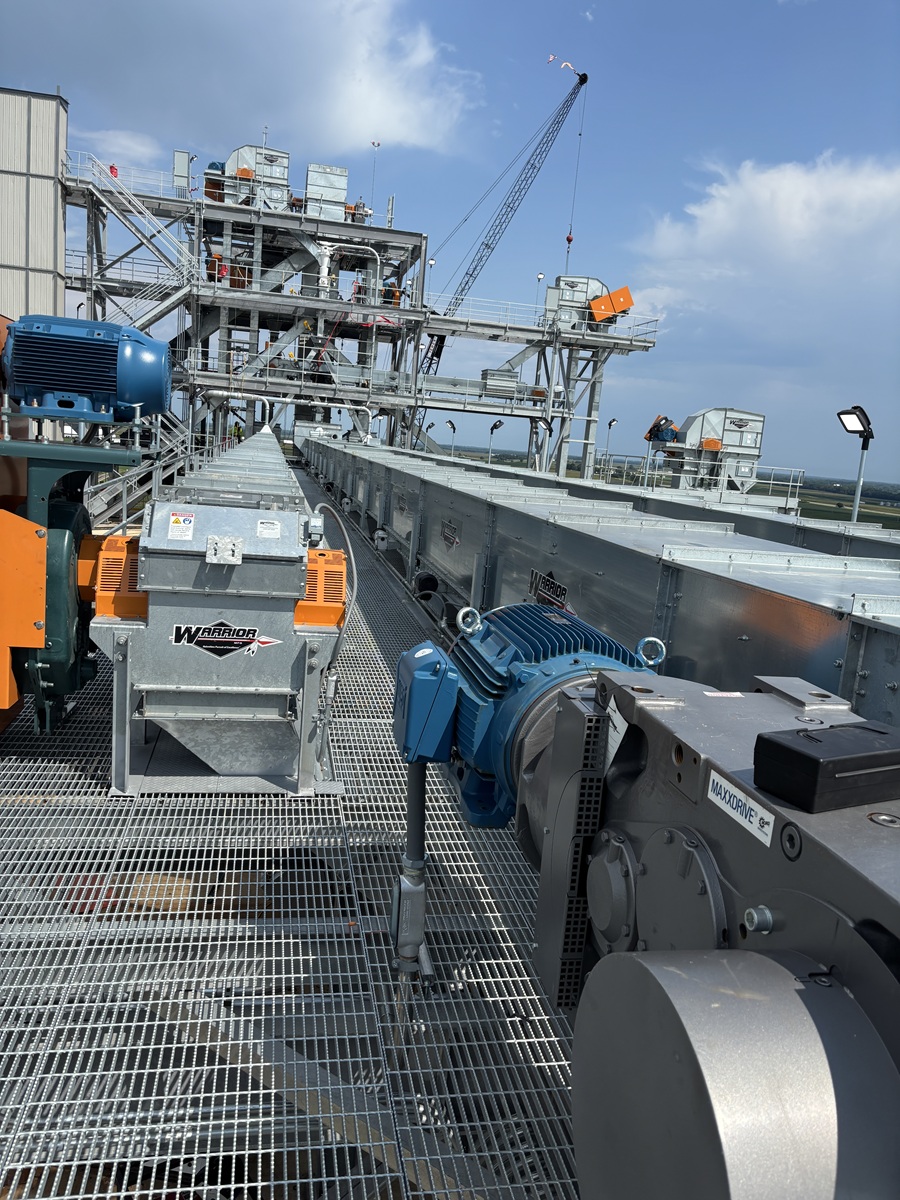

• 20,000 BPH dist drag conveyors with intermediate discharge gates

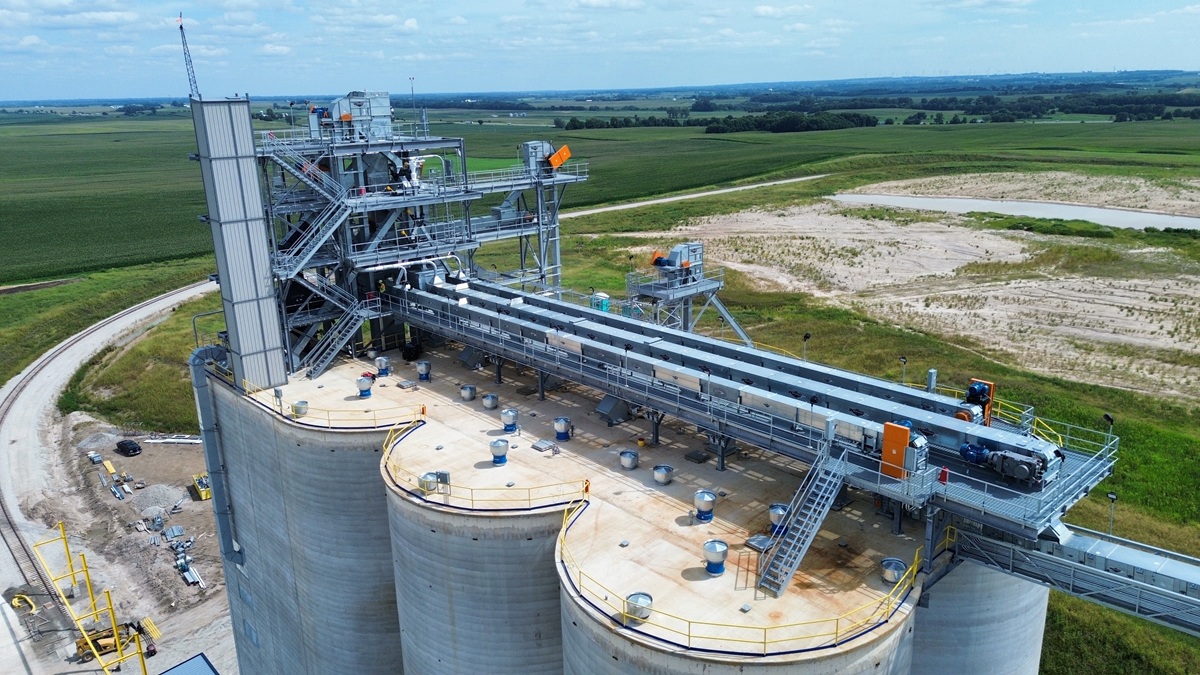

• 40,000 BPH bin fill Champion Series belt conveyors with 2-way heads
• 20,000 BPH wet and dry legs
• 60,000 BPH Champion Series belt conveyors
• 60,000 BPH x 213′ tall load out bucket elevator

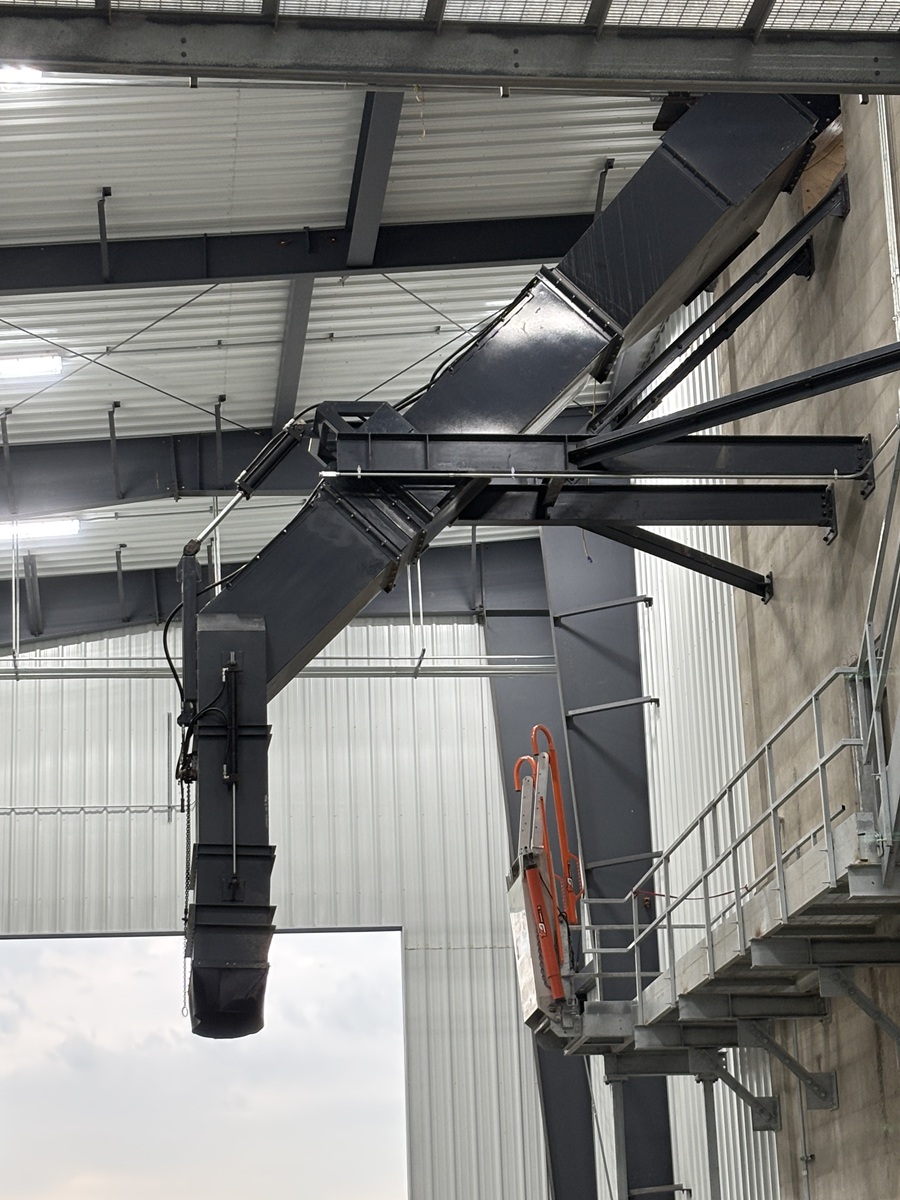

• 60,000 BPH bulk scale, sampler and hydraulic spout configure into the concrete silo

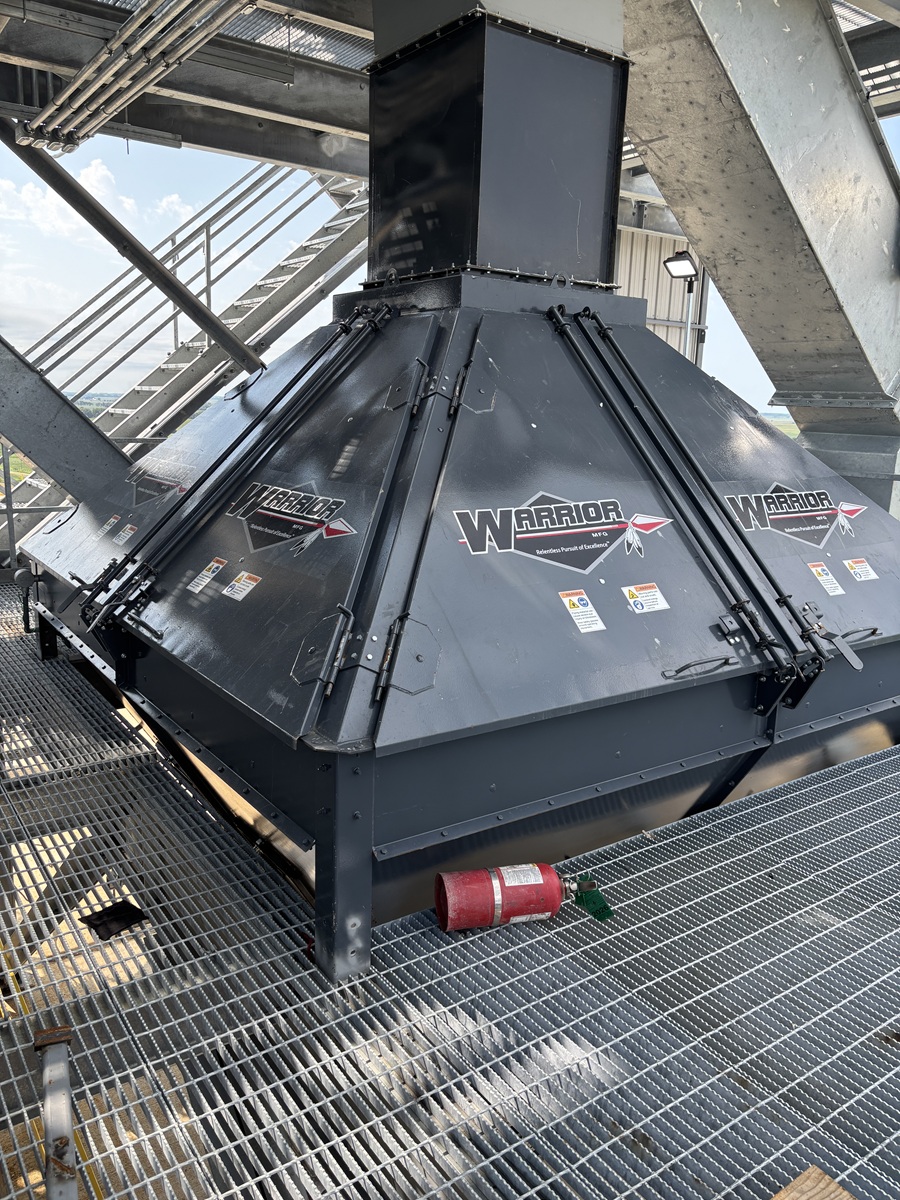

• 40,000 BPH gravity screener
