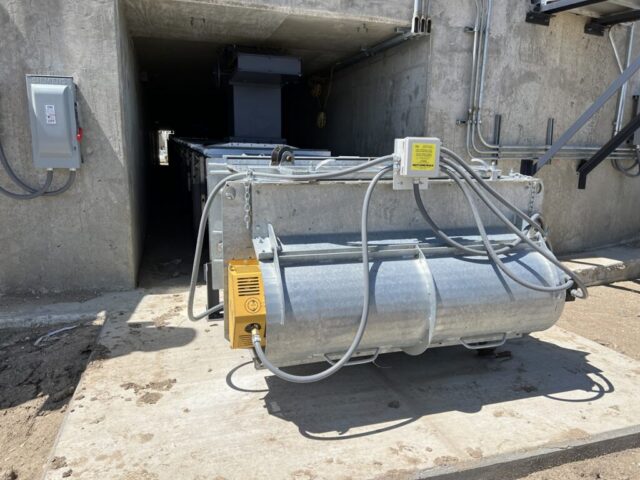

Shuttle loading facility

Project overview

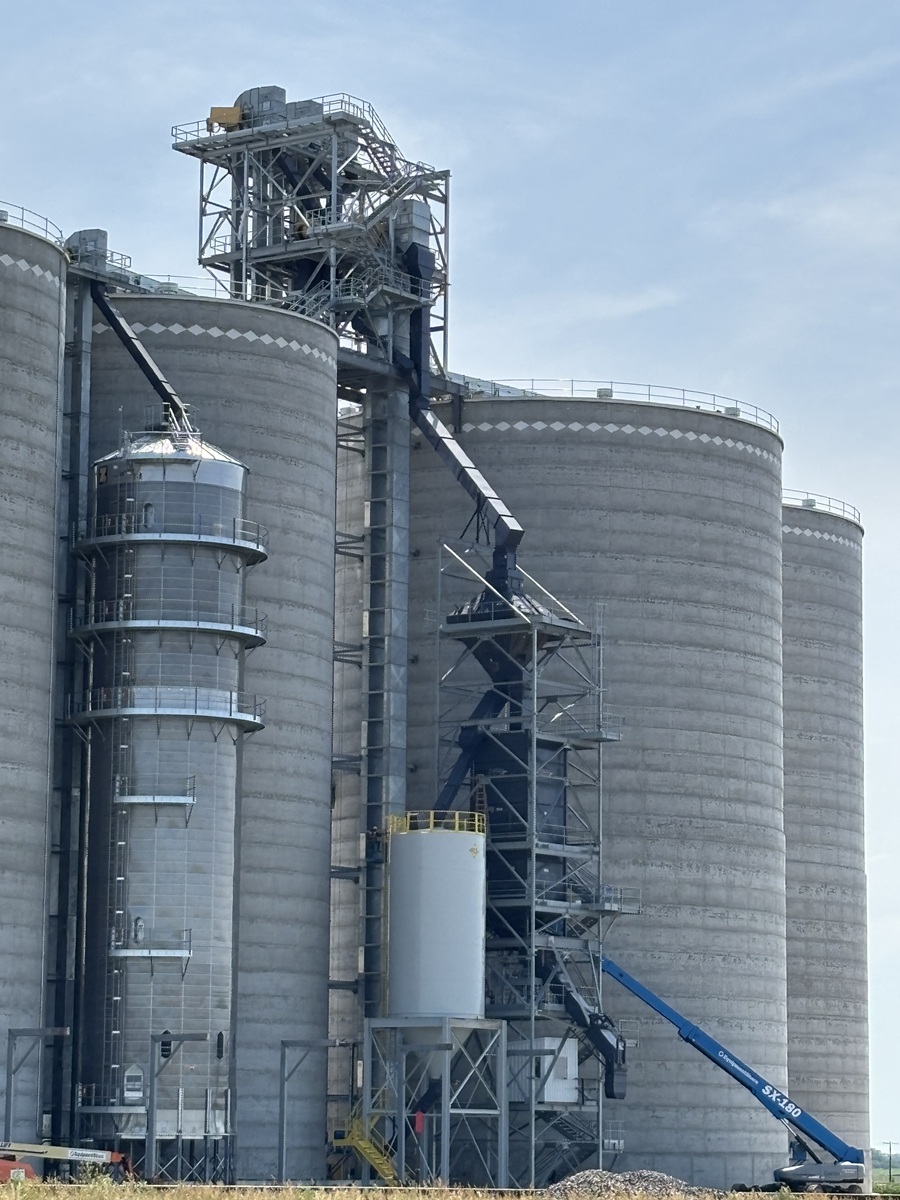

Warrior Mfg. engineered the complete material handling and structural support systems for this facility, covering high-capacity receiving, bin fill, reclaim, and loadout. The build included multiple Champion Series reclaim belt conveyors, 205′ tall bucket elevators, 25,000 bph bin fill drag conveyors, a complete bulk scale system, and all required structural tower and bridge supports.

Work included

• (2) 25,000 BPH receiving conveyors

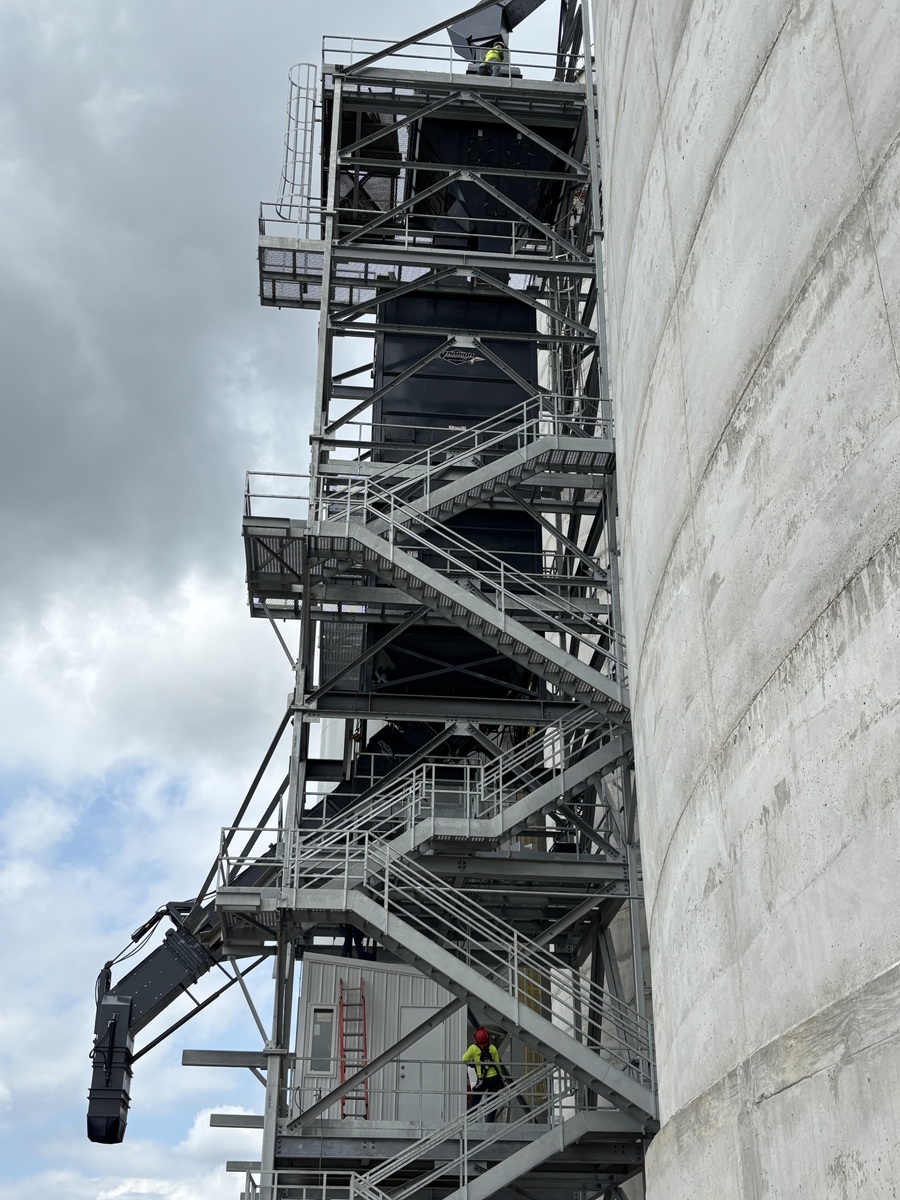

• (2) 25,000 BPH receiving bucket elevators – 205′ Tall

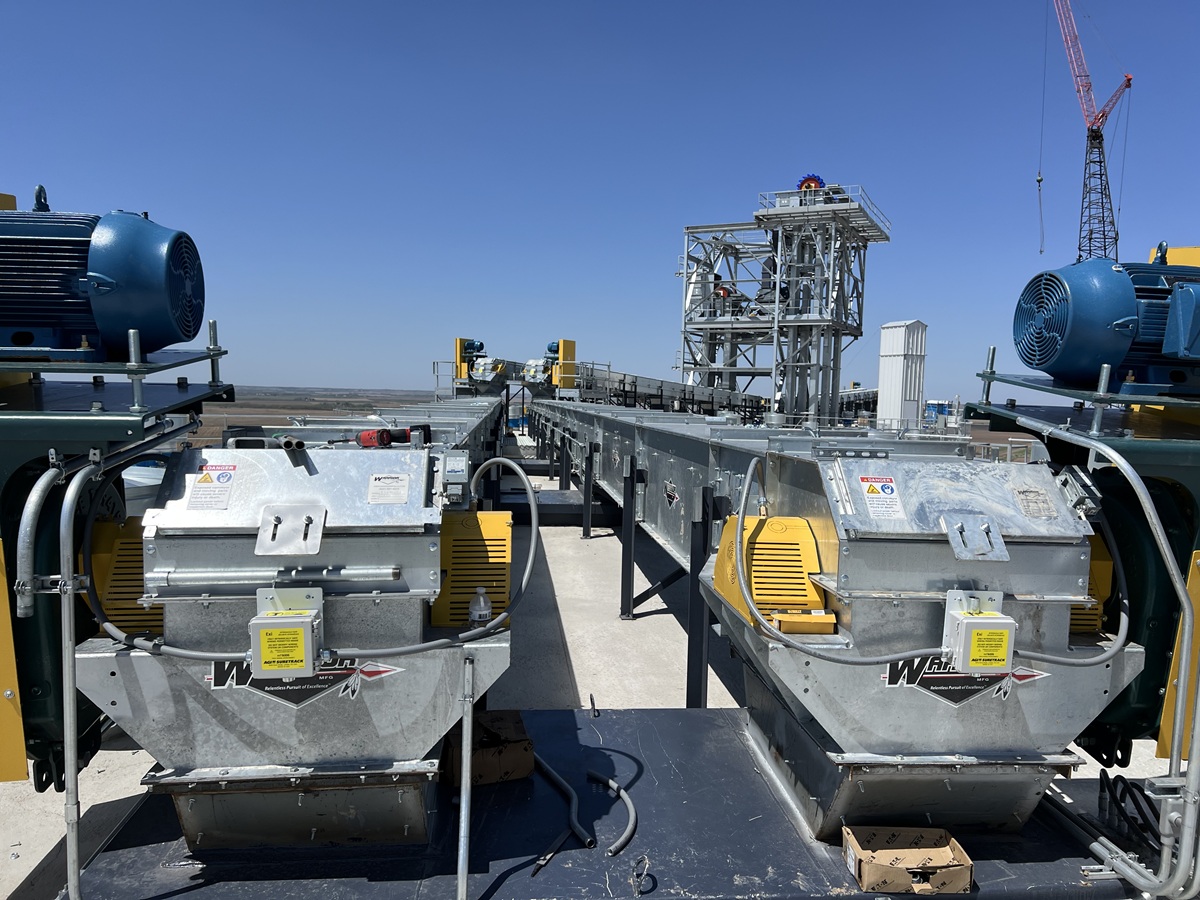

• Multiple 25,000 BPH fill conveyors with numerous intermediate discharge gates

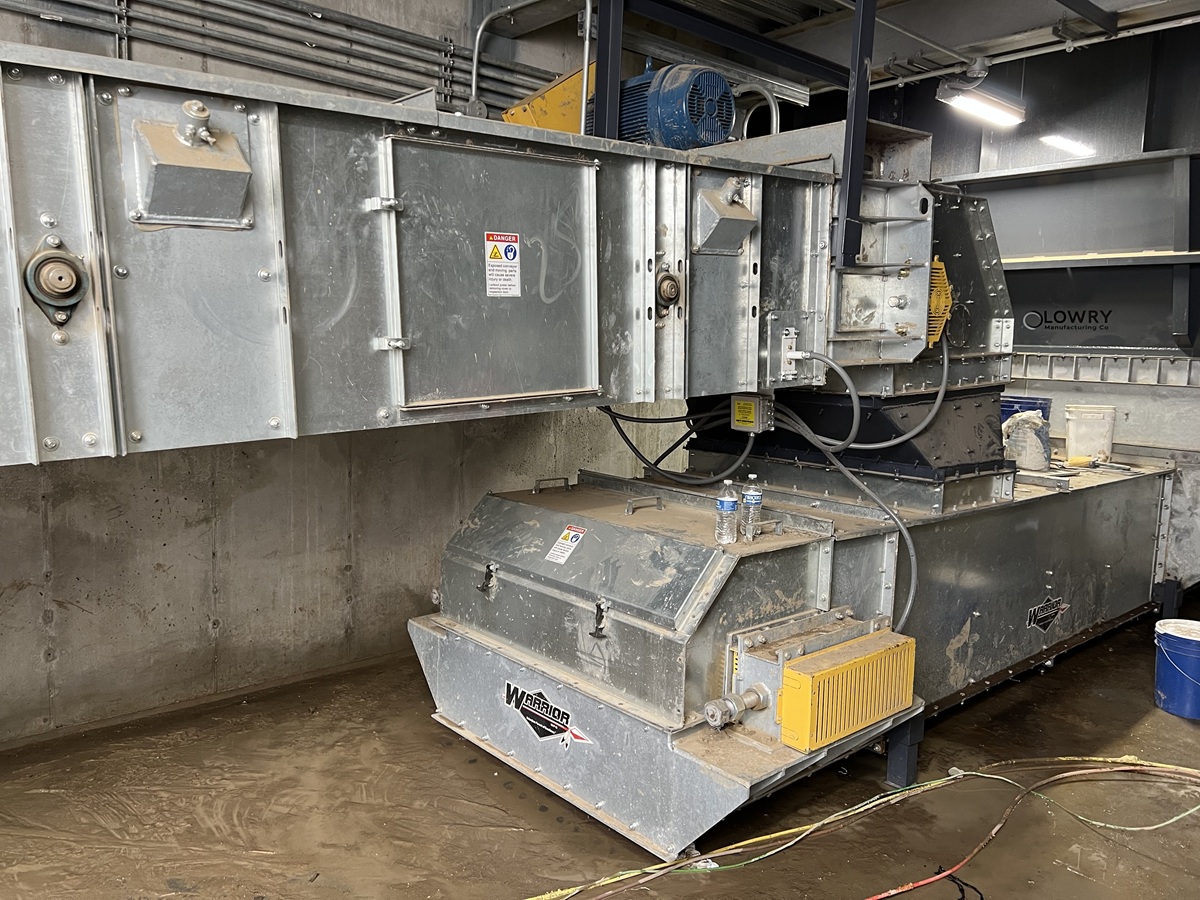

• 10,000 BPH drier bucket elevator & reclaim drag conveyor
• 40,000 BPH Champion Series reclaim belt conveyors

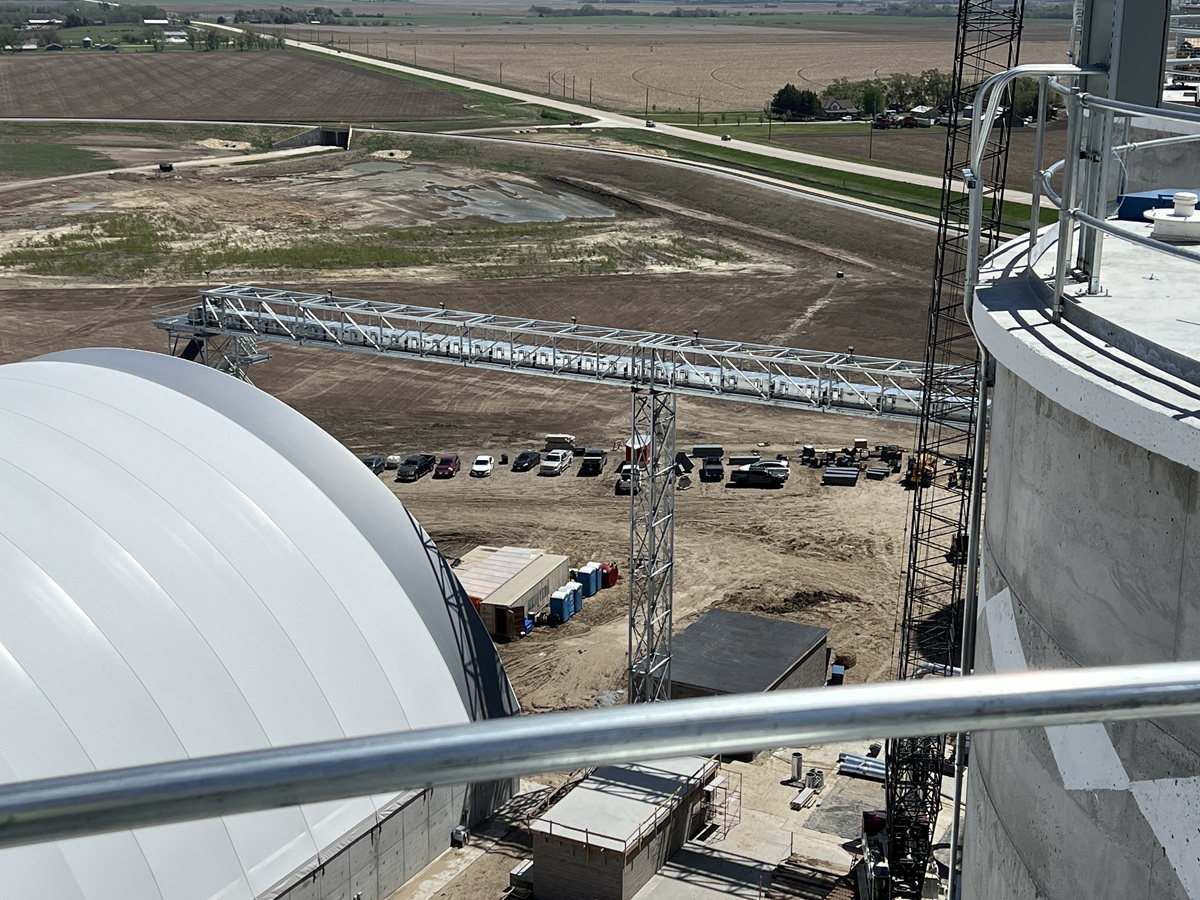

• 40,000 BPH Champion Series transfer and reclaim belt conveyors to flat storage building
• 40,000 BPH loadout bucket elevator
• 60,000 BPH complete bulk scale system including structure, scale, hydraulic spout, sampler, control room, fall safe, & 60,000 BPH gravity screener
• All required structural tower & bridge support systems
